projects Customer Stories

On the shelves of stores and supermarkets all over the world, there are piles of food produced using the equipment provided by HG.

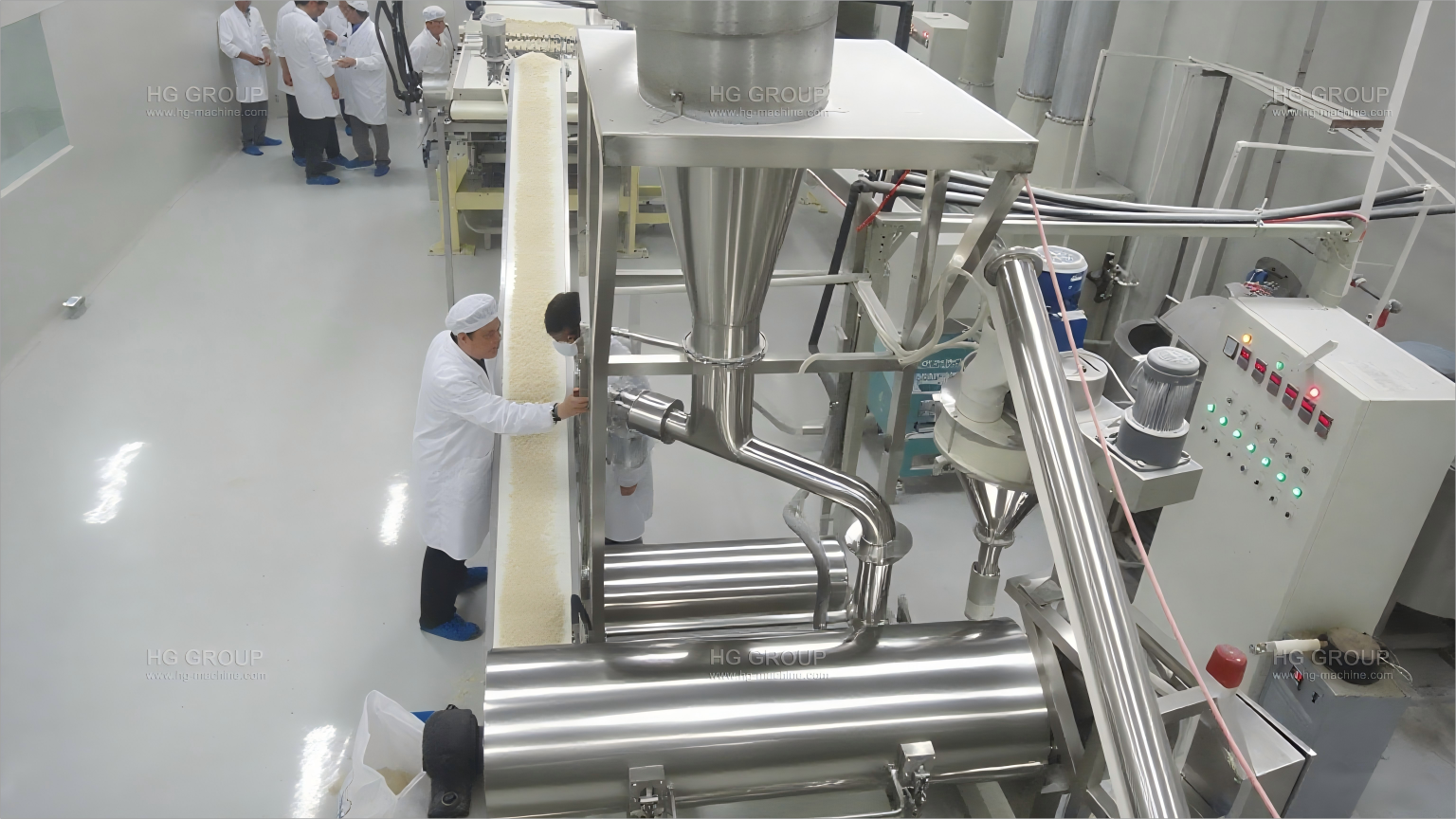

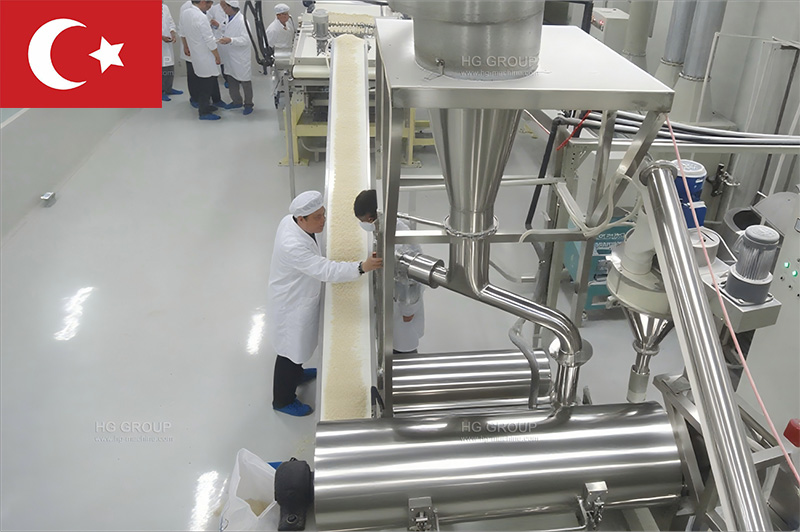

Compound potato chip production line - Turkey
  • Shanghai HG(hengguang) Food Machinery Co.,Ltd.
  • Shanghai HG(hengguang) Food Machinery Co.,Ltd.

Production capacity

250 kg/h

500 kg/h

Installed power

130 kw/h

150 kw

Fuel consumption

25 kg/h

35 kg/h

Gas consumption

25-30 m³/h

40-50 m³/h

Equipment length

40m

40m

Overview

Based on European and American technologies, it took HG Group more than one year to research and develop this fully automatic compound potato chips production line. The equipment uses potato powder as raw material, and gains crispy as well as delicious compound potato chips through mixing, pressing, forming, frying, and flavoring. It has become the preferred investment project for today's food manufacturers.
The potato chips equipment uses 304 stainless steel material and imported electronic components, thus the whole line can run stably for a long period of time and with high automation. Vertical type packing machine, pillow packing machine, and paper tube packing machine are all feasible for the final products. There are physical prototypes in our factories, and welcome all customers to visit.

Used product and types / dimension

Compound potato chip production line

Features

Possessing 30 patents
The thickness error of potato chips is controlled within 0.8mm
Temperature control is within ±2℃
Potato chip products have a uniform color
The oil filtering and oil circulation system is complete, making it easy to clean and maintain

Would you consider initiating a parallel project? Enquire Now

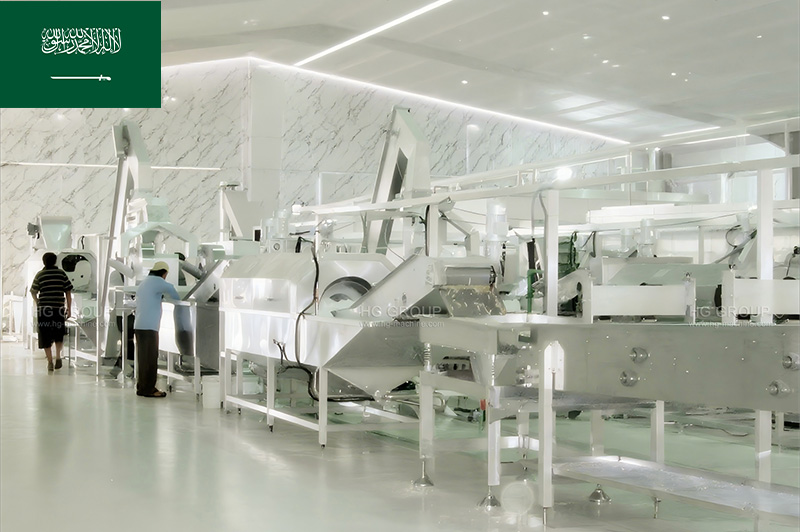

Frozen French fries production line - Saudi Arabia
  • Shanghai HG(hengguang) Food Machinery Co.,Ltd.
  • Shanghai HG(hengguang) Food Machinery Co.,Ltd.

Capacity

500 kg/h

1000 kg/h

Power

230 kw

480 kw

Length

About 54 m

About 59m

Add The Cooling System(no packing, no turning)

Power

370 kw

760 kw

Length

About 86m

About 95m

Overview

The main parts: Elevator, De-stone machine, Washing machine, Weigh hopper, Steam peeler, Collect and feeding hopper, Brush separator, Inspection conveyor, Cutting machine, Blanching machine, Second blanching machine, Vibrating water filter, Pre-drying machine, Oil fryer, Oil tank, De-oil machine (vibration type), Pre-cooler, Freezer unit.
Main characteristics: the whole line has high automation, all material is SUS304, uses imported cutters, and a quick freeze compressor. The electronic parts of the fryer use Panasonic, Omron, and so on, guaranteeing the machine has a stable running.

Used product and types / dimension

Frozen French fries production line

Features

Precise strip cutting technology
Efficient quick-freezing compression
Low-noise and environmentally friendly design

Would you consider initiating a parallel project? Enquire Now

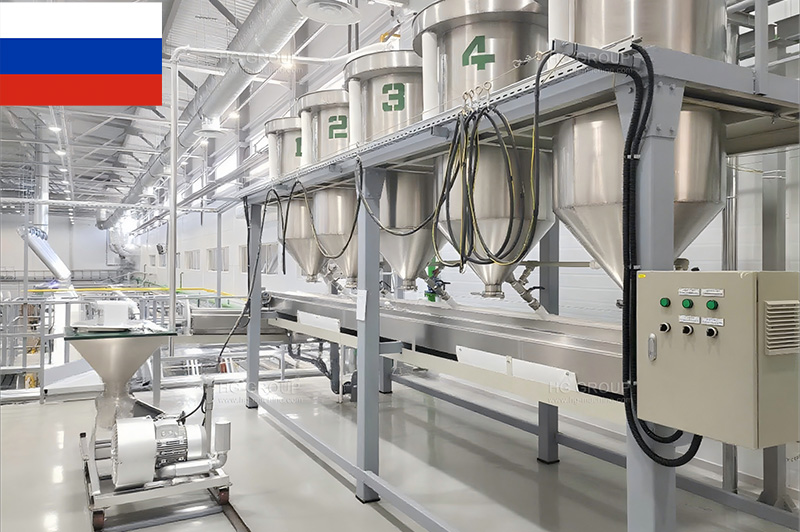

Rice cracker production line - Russia
  • Shanghai HG(hengguang) Food Machinery Co.,Ltd.
  • Shanghai HG(hengguang) Food Machinery Co.,Ltd.

Production capacity

5 T/day

12.5 T/day

20 T/day

Total power

150 kw

230 kw

350kw

Gas consumption

200kg/1T rice cracker

Overview

This fully automatic snow rice cracker production line incorporates advanced snow rice cracker processing machinery from Japan and Taiwan. While retaining its core production principles, it's optimized for the specific characteristics of Chinese rice varieties and the demands of large-scale production. The entire production line consists of four sections: milling, forming, puffing, seasoning, and packaging. As a domestically experienced manufacturer of rice processing equipment, this equipment, with its efficient and stable performance, high output capacity, and low investment costs, has become a top choice for food companies developing snow rice cracker products.

Used product and types / dimension

Rice cracker production line

Features

The first manufacturer of snow rice cake equipment in China
Automatic steam temperature control (solenoid valve temperature control)
The new cake arranging machine has a high adsorption rate of 99%

Would you consider initiating a parallel project? Enquire Now

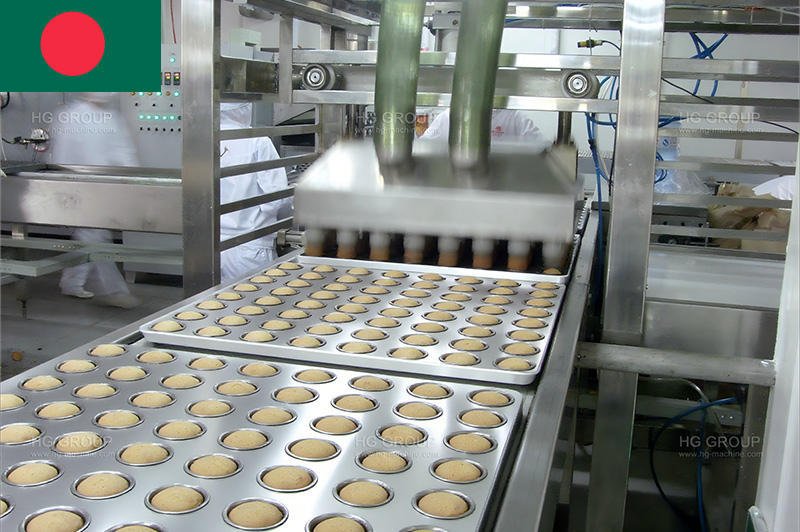

Cupcake production line - Bangladesh
  • Shanghai HG(hengguang) Food Machinery Co.,Ltd.
  • Shanghai HG(hengguang) Food Machinery Co.,Ltd.

Production capacity

6 T/day

9 T/day

Power

28kw

35kw

Gas consuming

28-30  m³/h

30-35  m³/h

Length of equipment

68m(except pack)

68m(except pack)

Width

800mm

1000mm

Overview

As a fully automatic Custard/Cup Cake Production Line, it is developed based on the original equipment as a way to meet various demands of different food product factories. This whole cupcake production line, also including outside of the oven, is made from stainless steel with high quality, and we choose electronic components with well-known brands at home and abroad. It can not only produce core-filling custard pies as well as cup cakes, but also produce cakes of various shapes by using different molds.
Hot air circulation tunnel oven: As a novel baking furnace, which is developed by our factory on the basis of the imported equipment, it adopts the advanced gas combustion and hot-air circulation heating mode. It has six temperature zones: front, middle, back, up, and own. After setting the temperature, the control motor is used for automatic control by a disc valve, and the heat is transferred to the hearth by the air duct up and down to bake food. There are many pros of this oven, such as quick heating, stable temperature, little change, automatic temperature control, etc. Therefore, the final products are good taste, soft, more uniform in surface color, bright, fresh, and tender, etc.

Used product and types / dimension

Center Filled/Cup Cake Production Line

Features

The weight error of each cake is within ±1g
Free design of various styles of molds
The most advanced and precise vertical core injection
Hot air circulation tunnel oven with high output

Would you consider initiating a parallel project? Enquire Now
